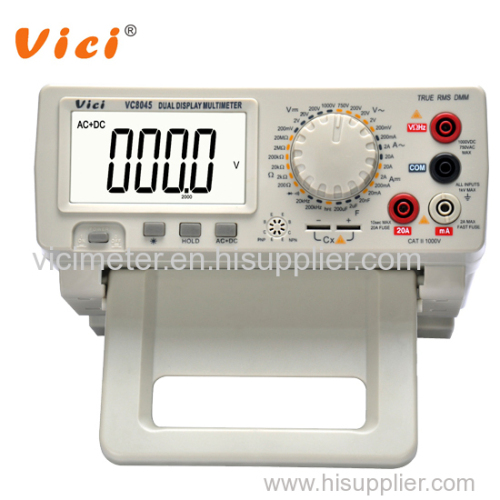

VICI desk top 19999 max digits digital multimeter

Features:

1. 4 1/2 digit large LCD display with backlight;

2. With the DCV,ACV,DCA,ACA,Ω,CAP,Hz,hFE,diode and continuity test function;

3. Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;

4. Max. current measuring: 20A, polarity automatic switch,data hold,backlight;

5. AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring.

Technical Data:

DCV 200mV/2V/20V/200V/1000V ±(0.05%+1)

ACV 200mV/2V/20V/200V/750V ±(0.8%+80)

DCA 20mA/200mA/2A/20A ±(0.35%+10)

ACA 200mA/2A/20A ±(0.8%+80)

Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.1%+5)

Frequency 20kHz/200kHz ±(1.0%+20)

Capacitance 20nF/2uF/200uF ±(3.5%+20)

Special Function:

Diode test √

hFE test √

True RMS √

Continuity alarm √

Overload protect √

Input impedance 10MΩ

Sampling rate 3times/s

AC Frequency response 40Hz-50kHz

Operation way Manual range

Max. display 19999

Power supply AC 220V/110V     50Hz/60Hz

General Characteristic:

Color: beige

Weight: 1.5kg

Meter size: 245×220×82mm

Standard accessory: Test leads, power cord ,manual

Packaging Info:

Individual packing style: Gift box

Standard qty package: 6pcs / 8pcs

6pcs packing carton: 61.0x31.0x49.0cm, GW is 14kg/ctn

8pcs packing carton: 61.0x31.0x64.0cm,  GW is18kg/ctn
