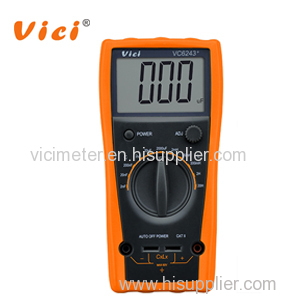

VICI capacitance inductance electronic testing digital meter VC6243+

Features:

1. New type holster, streamline design;

2. Large LCD makes the reading clear;

3. Strong antimagnetic and anti-jamming performance;

4. Full protect function, capacitor with the function of self discharge;

5. Unit symbol display, easy to operate.

Technical Data:

Capacitance 2nF/20nF/200nF/2uF/20uF/2000uF ±(2.0%+5)

Inductance 2mH/20mH/200mH/2H/20H ±(2.0%+5)

Special Function:

Low battery indication Approx. less than 7.5V

capacitor discharge protection √

Auto power off It will power off in 30 minutes if there is no measurement.

Function protection √

Anti-shock protection √

Sampling rate 3times/s

Operation method Manual range

Max. display 1999

LCD size 65×41mm

Battery 9V (6F22)

Power consumption Quiescent current approx. 4mA

General Characteristic:

Color Orange and Grey

Weight 290g(including battery)

Meter size 185×93×35mm

Standard accessory Test leads, battery, manual

Packing Gift box

Standard packing per carton 30pcs

Carton size 43.5*29.5*40.5CM

Standard G.W per carton 17 kg
