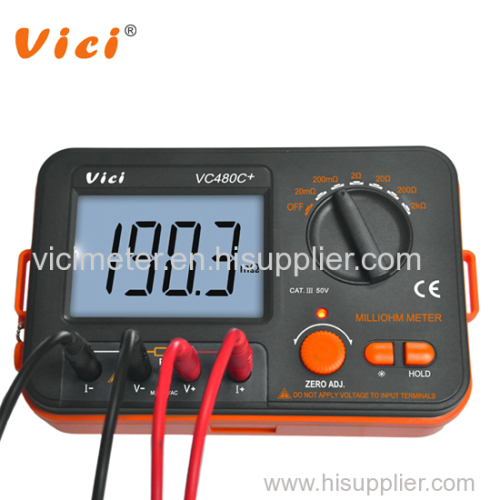

Vicimeter VC480C+ low resistance tetsing micro ohm meter

Features:

1. Large LCD display for easy reading

2. Adopts 4 wire testing, capable of testing extreme low resistance

3. Accurate measurement of conductor, electric heating elements and solder point

4. High measurement range of 0.01mΩ to 2kΩ at 6 ranges

5. HOLD key for data hold

6. Backlit LCD for easy reading under dark light

7. Connection for external power supply

8. Strong anti-magnetic and anti-jamming functions

9. Full function protection

Technical Data:

20mΩ: accuracy ±(0.5%rdg+3),    resolution 0.01 mΩ ,   measuring current approx.100mA

200mΩ: accuracy  ±(0.5%rdg+3),  resolution  0.1 mΩ,    measuring current approx.50mA

2Ω:accuracy ±(0.5%rdg+3), resolution 1 mΩ, measuring current approx.50mA

20Ω:  accuracy  ±(0.5%rdg+3), resolution 1 0mΩ, measuring current approx.50mA

200Ω: accuracy  ±(0.5%rdg+3) ,   resolution 1 00mΩ, measuring current approx.50mA

2kΩ : accuracy   ±(0.5%rdg+3), resolution 1Ω, measuring current approx.50mA

Special Function:

Low battery indication    Less than approx.7.5V

Function protection    √

Sampling rate    3 times/sec.

Operation mode    Manual range

Max.display    1999

LCD size    75×52mm

Power source    1.5V AAA battery x6pcs, or external DC 9V power source

Power consumption    Quiescent current approx.50mA

General Charasteristic:

Color    Orange and Gray

Weight    580g (including battery)

Meter size    175 (L) x116 (W) x63 (D) mm

Standard accessory    4-wire test lead, shoulder strap, battery, operation manual

Individual packing    Gift box

Master carton packing    20pcs

Master carton size    37.5*36*43CM

Master carton weight     17.5KG
