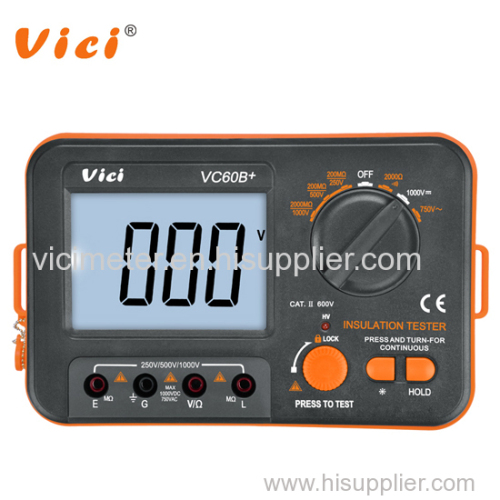

vici VC60B+ megga resistance insulation tester

Features:

1. An accurate, reliable and easy-to-use insulation tester

2.  Large LCD display, easy to read

3.  Strong anti-magnetic and anti-jamming function

4.  Full function protection, anti high voltage circuit design

5.  Unit symbol display, easy to use

6. High voltage and short circuit input alarm

Technical Data:

Insulation Resistance

250V±10% test voltage    0~200MΩ    ±(4.0%+2)    100kΩ

500V±10% test voltage    0~200MΩ        100kΩ

1000V±10% test voltage    0~2GΩ        1MΩ

Resistance   0~2kΩ    ±(1.0%+5)    1Ω

DCV    0~1000V        1V

ACV    0~750V    ±(1.5%+5)    1V

Special Function:

Continuity alarm    Less than 30Ω±10Ω

Low battery indication    Less than approx.7.5V

Data hold    √

LCD backlight    Approx.10Sec.

Function protection    √

Input impedance    1MΩ

Sampling rate    3 times/Sec.

AC frequency response    50-200Hz

Operation mode    Manual range

Max. display    1999

LCD size    75 x 52mm

Power source    1.5V AA battery x6pcs, or external DC 9V power source

Power consumption    Quiescent current approx.3mA

General Characteristic:

Color    Orange and Gray

Weight    580g (including battery)

Meter size    176 (L) x116 (W) x63 (D) mm

Standard accessory    Test lead, shoulder strap, battery, operation manual

Individual packing    Gift box

Master carton packing    20pcs

Master carton size    37.5*36*43CM

Master carton weight      17.5KG

Conclusion:

vici VC60B+ Insulation Resistance Tester is designed with safety protection high voltage warning, insulation breakdown short circuit alarm, continuous insulation test device for specific environment, accurate and safe for you to use with peace of mind. It can test the insulation resistance between various generators, motors, power sockets, cables, enameled coils, conductors and non-conductors on trains, EMUs, and equipment.
