Vicimeter solar radiation solar installation solar research solar power meter

Features:

Measurable light sources, including all visible light

Pragmatic Data Hold, Peak-value Hold functions

Select either W/m2 or BTU / (ft2*h) units

High precision and stable for long use

Overload display " 1"

Technical Data:

Basic function Range Accuracy

W/ m² 2000 W/ m² Typically within ±10W/m2 or ±5% whichever is greater in sunlight.

Additional temperature included error±0.38 W/m2 / ℃ deviation from 25℃

BTU 634BTU (ft2 x h) Typically within ±BTU/ (ft2 x h) or±5% whichever is greater in sunlight.

Additional temperature included error [±0.12 BTU/ (ft2xh)] / ℃ deviation from 25 ℃

Specific Function:

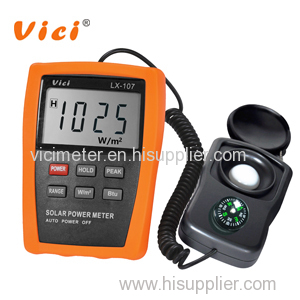

Device Name Solar Power Meter

Model LX-107

Max. display 3½ digits (1999 digts)

Angular accuracy Cosine corrected <5% for angles <60°

Drift < ±2% per year

Sensor Photo diode and filter

Overload display Display "OL"

Sampling rate 2.5 times/second

Operating Temperature &Humidity 0 ℃ ~ 50 ℃ below 80% RH

Storage temperature -10 ℃ ~ 60 ℃ below 70% RH

General Characteristic:

Model number LX-107

Meter color Body: dark gray; Holster color: orange

Meter size 130×95×30mm

Meter weight About 300g

Standard accessory 9V battery * 1 (lifetime: about 100 hours), manual*1, black pouch*1

Standard packing Gift box and black pouch

Sandard QTY per carton 40pcs

Carton size 48.5×33.0×39.5cm

G.W per carton 17.2kg

This 107 is a device used to measure solar power, mainly applied for solar radiation measurement, solar power research, physics and optical laboratories, identify high performance windows, meteorological, agricultural; also can be used for sun-protection in our daily life.
