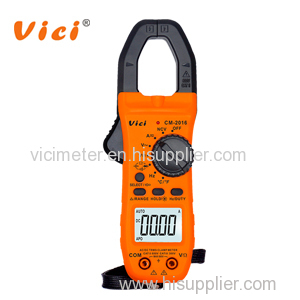

VICIMETER AC DC auto ranging digital clamp meter CM-2016

Features:

Clamp opens 28mm

Portable design, easy use

Clamp light, Backlight, Flash light

Large LCD display makes reading clear

CE standard design, improves the safety of the test

Full function protection, strong anti-interferential performance

Duty cycle test, REL test, NCV, TRMS test, data hold, APO function

Technical Data:

DCV 600mV/6V/60V/600V ±(0.5%+3)

ACV 6V/60V/600V ±(0.8%+5)

DCA 60A/600A/800A ±(1.5%+5)

ACA 60A/600A/800A ±(1.5%+5)

Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)

Capacitance 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF ±(3.5%+20)

Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.1%+3)

Temperature (-40 to 1000 )℃, (-40 to 1832 ) ℉ ±(1.0%+5)

Special Function:

Diode test √

Continuity test Less than 50Ω±10Ω

Low battery indicator

Low battery indicator Approx. less than 2.6 V

Data hold √

NCV √

Auto power off About 15 minutes

TRMS test √

Function protection √

Clamp light √

Backlight display √

Input impedance 10MΩ

Sampling rate 3 times/s

AC frequency response Current 40 to 100Hz / Voltage 40 to 2000Hz

Operation method Auto or manual range

Max display 6000

Clamp opens 28mm

Battery 3V (2*AAA battery)

General Characteristic:

Meter color Orange and Black

Meter weight About 200g (including battery)

Meter size 185*65*32mm

Standard accessory Test leads, battery, manual, temperature probe, carrying bag

Standard packing Gift box

Carton size 41.5*28*42.5CM

Standard QTY per carton 40pcs

G.W per carton 15kg
