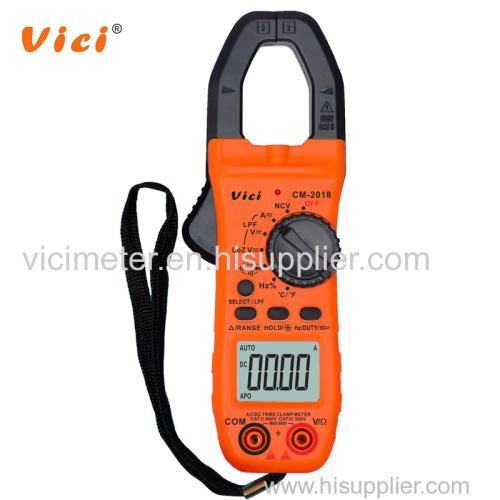

CM-2018 LPF, Loz, Auto-V function AC/DC 3 5/6 Digital Clamp Multimeter

Features:

Clamp opens 28mm

NCV, T-RMS, LPF, LoZ V function

Clamp light, Backlight, Flash light

Max. 6000 digits large LCD display

CE standard design, improves the safety of the test

Full function protection, strong anti-interferential performance

Duty cycle test, REL test, data hold, Auto power off function

Technical Data:

Basic function Range Accuracy

DCV 600mV/6V/60V/600V ±(0.5%+3)

LoZ 0V~600V ±(2.0%+10)

ACV 6V/60V/600V ±(0.8%+5)

LPF 0V ~ 600V ±(4.0%+5)

LoZ 0V ~ 600V ±(2.0%+10)

DCA 60A/600A/800A ±(1.5%+5)

ACA 60A/600A/800A ±(1.5%+5)

Resistance 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.8%+3)

Capacitance 6nF/60nF/600nF/6uF/60uF/600uF/6MF/60MF ±(3.5%+20)

Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.1%+3)

Temperature (-40 to 1000 )℃, (-40 to 1832 ) ℉ ±(1.0%+5)

Special Function:

Model CM-2018

Diode test √

Continuity test Less than 50Ω

LoZ V function √

Low battery indicator Approx. less than 2.6 V

Data hold √

NCV √ (2 detecting way)

Auto power off About 15 minutes

True RMS test √

LPF function √

Function protection √

Clamp light function √

Backlight display √

Input impedance 10MΩ

Sampling rate 3 times/s

AC frequency response Current 40 to 100Hz / Voltage 40 to 2000Hz

Operation method Auto or manual range

Max display 6000

Clamp opens 28mm

Battery 3V (2*AAA battery)

General Characteristic:

Meter color Orange and Black

Meter weight About 200g (including battery)

Meter size 185*65*32mm

Standard accessory Test leads, battery, manual, temperature probe, carrying bag

Standard packing Gift box

Carton size 41.5*28*42.5CM

Standard QTY per carton 40pcs

G.W per carton 15kg

Note:

For the NCV detecting function, this clamp meter is not only can detect the NCV by clamp, but also can be directly touched by the red stylus probe to detect cable that could not be reached by the clamp.
