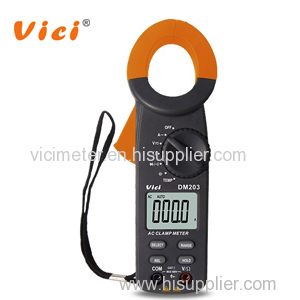

Vici 35mm clamp jaw mini portable digital clamp multimeter DM203

Features:

1. Clamp opens 35 mm;

2. Portable design, easy to operate.

3. Full function protection, anti high voltage circuit design

4. CE standard design, improves the safety of the test.

5. Max measuring capacitance, data hold.

Technical Data:

DCV    400mV/4V/40V/400V/600V    ±(1.0%+5)

ACV    400mV/4V/40V/400V/600V    ±(1.5%+5)

ACA    4A/40A/400A/600A    ±(2.0%+5)

Resistance    400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ    ±(0.8%+3)

Capacitance    4nF/40nF/400nF/4uF/40uF/200uF    ±(3.0%+10)

Temperature    (-40 ~ 1000) ℃ | (-40 ~ 1832) ℉    ±(1.0%+5)

Special Function:

NCV    √

True RMS    √

Diode test    √

Continuity alarming    Less than 50Ω

Low battery indication    Approx. less than 2.4 V

Data hold    √

Auto power off    About 15 minutes

Function protection    Full function protection

Input impedance    10MΩ

Sampling rate    3 times /s

AC frequency response    Ampere 50Hz / Voltage (40-400) Hz

Operation method    Manual or auto range

Max. display    4000

Clamp opens    35mm

Battery    3V (2×1.5V)

General Characteristic:

Color    Orange and Black

Weight    About 200g (including the battery.)

Standard accessory    Test leads, battery, manual, TP01 temperature probe

Packing    Gift box

Carton size    45.3*32.5*43CM

Standard packing per carton    40 PCS

Standard G.W. per carton    14KG
