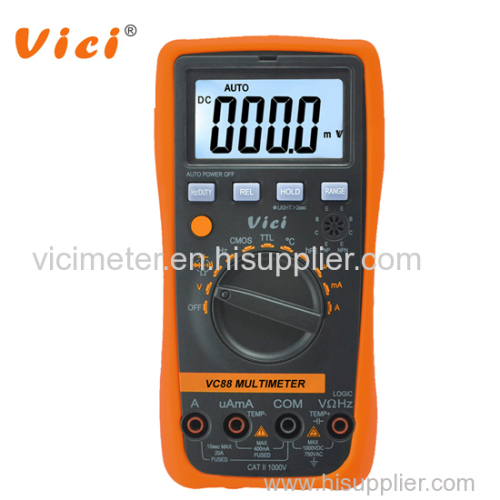

VICI logic test handheld digital multimeter

Features:

1. Streamlined design, comfortable handle;

2. Large LCD display makes reading clear;

3. Strong antimagnetic and anti-interferential performance;

4. Auto power off when there is no measurement in 15 minutes;

5. Full function protection;

6. Unit symbol display, easy to read;

7. CMOS, TTL logic test;

8. Relative value measurement, frequency/ duty cycle test, data hold.

Technical Data:

DCV    400mV/4V/40V/400V/1000V    ±(0.5%+4)

ACV    400mV/4V/40V/400V/750V    ±(0.8%+6)

DCA    400uA/4000uA/40mA/400mA/4A/20A    ±(1.0%+5)

ACA    400uA/4000uA/40mA/400mA/4A/20A    ±(1.5%+5)

Resistance    400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ    ±(0.8%+1)

Capacitance    4nF/40nF/ 400nF/4uF/40uF/200uF    ±(3.5%+8)

Frequency    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz    ±(0.5%+4)

Temperature    -40℃~1000℃    ±(0.8%+4)

Special Function:

Logic function    √

Diode and hFE test    √

Continuity alarm    Less than 50Ω±10Ω

Low battery indication    Approx. less than 2.4 V

Duty cycle test    √

Data hold    √

Backlight display    √

Auto power off    About 15 minutes

Function protection    √

Input impedance    10MΩ

Sampling rate    3times/s

AC frequency response    40-400Hz

Operation method    Auto or manual range

Max display    4000

LCD size    54x30mm

Battery    3V (1.5V AAA×2)

Power consumption    Quiescent current approx. 2mA

General characteristic:

Meter color    Orange and Grey

Meter weight    290g (including battery)

Meter size    170×86×35mm

Standard accessory    Test leads, battery, manual, TP01 temperature probe.

Standard packing    Gift box

Standard QTY per carton    40pcs

Carton size     38.5*30.5*46.5CM

G.W per carton    18.7KG
