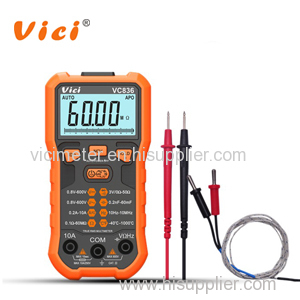

VICI smart automatically digital multimeter VC836

Features:

1. ONE-BUTTON testing; Auto identify testing range;

2. Large LCD with Unit symbol & Analog bar display;

3. Data hold, Lighting, Backlight display function;

4. Strong antimagnetic & Anti-interferential performance;

5. Full function protection and Auto power off function;

6. True RMS test and Non-contact voltage test function;

7. DCA, ACV, DCA, ACA, OHM, Capacitance, Frequency, Diode & Continuity tests.

Technical Data:

1. DCV measurement:

    6V/60V    ±(0.5%+4)

    600V    ±(1.0%+4)

2. ACV measurement:

    6V/ 60V    ±(0.8%+6)

    600V    ±(1.0%+6)

3. DCA measurement:   10A    ±(2.0%+5)

4. ACA measurement:   10A    ±(2.0%+10)

5. Resistance measurement:

    600Ω    ±(0.8%+5)

    6kΩ/ 60kΩ/ 600kΩ/ 6MΩ    ±(0.8%+1)

    60MΩ    ±(1.2%+5)

6. Capacitance measurement:

    60nF    ±(2.5%+6)

    600nF/ 6uF/ 60uF    ±(2.5%+5)

    600uF/ 6mF/ 60mF    ±(5.0%+8)

7. Frequency measurement:

   10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/10MHz    ±(0.5%+4)

8. Temperature measurement:

For -40℃~1000℃ range:

<400℃ ±(1.0%+5)

≥400℃ ±(1.5%+15)

For -40℉~1832℉ range:

<750℉ ±(1.0%+5)

≥750℉ ±(1.5%+15)

Specific Function:

True RMS    √

NCV    √

Analog bar display    √

Data hold    √

Function protection    √

Torch function    √

Backlight display    √

Diode test    √

Continuity alarm    Less than 50MΩ

Low battery indicator    Approx. less than 2.4V

Protect/Shockproof protect function    √

Input impedance    10MΩ

Sampling rate    3 times/s

AC frequency response    40Hz-2kHz

Operation method    Manual or Auto range

Max. display    6000

LCD size    61x28mm

Battery    3V (1.5V AAA x 2)

Power consumption    Quiescent current about 2mA

General Characteristic:

Meter color    Orange + Grey

Meter weight    195g (including battery)

Meter size    140×72×37mm

Standard accessory    Gift-box, Test leads, battery, manual, TP01 temperature probe

Standard packing    Gift box
