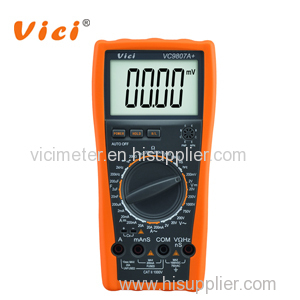

VICI 19999 high accuracy 0.1nS to 100nS conductance digital multimeter VC9807A+

Features:

1. Comfortable streamline design;

2. Large LCD makes the reading clearly;

3. Strong antimagnetic and anti-jamming performance;

4. Auto power off function after 30 minutes;

5. Full function protection, anti high voltage circuit design (voltage dependent resistor:1300V);

6. Unit symbol display, very easy to reading;

7. Max. measuring range of capacitance:200uF

Technical Data:

DCV    200mV/2V/20V/200V/1000V    ±(0.1%+5)

ACV    2V/20V/200V/750V    ±(0.8%+25)

DCA    200uA/2mA/20mA/200mA/20A    ±(0.5%+4)

ACA    200mA/20A    ±(1.5%+25)

Resistance    200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ    ±(0.2%+5)

Conductance    (0.1~100)nS    ±(1.0%+5)

Capacitance    2nF/20nF/2uF/200uF    ±(3.5%+10)

Frequency    2kHz/200kHz    ±(3.0%+15)

Special function:

Diode test    √

hFE test     √

Continuity alarm    Approx. less than 30Ω±10Ω

Low battery indication     Approx less than 7.5V

Data hold    √

Auto power off    Approx. 30minutes

Backlight display    Approx. 10 seconds

Function protection    √

Anti-shock protection    √

Input impendence    10MΩ

Sampling rate    3times/s

AC frequency response    40-400Hz

Operation way    Manual range

Max. display    19999

LCD size    65×41mm

Battery    9V (6F22)

Power consumption    Quiescent current approx. 3mA

General Characteristic:

Color    Orange and Grey

Weight    290g(including battery)

Meter size    185×93×35mm

Standard accessory    Test leads, battery, manual

Packing    Gift box

Standard packing per carton    30pcs

Carton size    43.5*29.5*40.5CM

Standard G.W per carton    17kg
