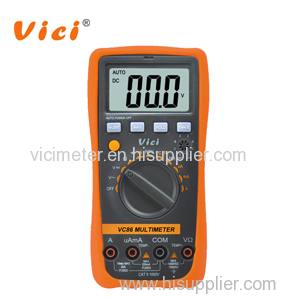

VICI high repurchase palm digital multimeter VC86

Features:

1. Streamlined design, comfortable handle;

2. Large LCD display makes reading clear;

3. Strong antimagnetic and anti-interferential performance;

4. Auto power off when there is no measurement in 15 minutes;

5. Full function protection;

6. Unit symbol display, easy to read;

7. Non-contact voltage detect (NCV) with visual and sound alarm;

8. Max value hold. Data hold.

Technical Data:

DCV    200mV/2V/20V/200V/1000V    ±(0.5%+4)

ACV    200mV/2V/20V/200V/750V    ±(0.8%+5)

DCA    200uA/2000uA/20mA/200mA /2A/20A    ±(1.0%+5)

ACA    200uA/2000uA/20mA/200mA /2A/20A    ±(1.5%+5)

Resistance    200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ    ±(0.8%+1)

Temperature    (-40~ 1000)℃    ±(0.8%+4) |    (-40~ 1832)℉    ±(1.2%+4)

Special Function:

True RMS    √

NCV    √

Diode and hFE test    √

Continuity alarm    Less than 50Ω

Low battery indicator    Approx. less than 2.4 V

Backlight display, Data hold    √

Auto power off    About 15 minutes

Function protection    √

Input impedance    10MΩ

Sampling rate    3 times/s

AC frequency response    40-400Hz

Operation method    Auto or manual range

Max display    1999

LCD size    54x30mm

Battery    3V (1.5V AAA×2)

Power consumption     Quiescent current about 2mA

General Characteristic:

Meter color    Orange and Grey

Meter weight    290g(including battery)

Meter size    170×86×35mm

Standard accessory    Test leads, battery, manual, TP01 temperature probe

Standard packing    Gift box

QTY per carton    40pcs

Carton size    38.5*30.5*46.5CM

G.W per carton    17.6KG
